Drum Racks
DR-564C Drum Rack Recipe
Road-ready and artist-designed, Pearl's ICON drum set mounting systems expand to include three pre-packaged Rack Recipes for the mobile touring artist. Specifically configured for set-up efficiency in smaller spaces, each ICON drum rack delivers solid, slip-free support and can be used in single rack or as part of a larger, customized set-up.
rgb(238,238,238)
DR-564C Drum Rack Recipe
- MODEL NUMBER
DR-564C
ICON hardware solutions expand to include three new pre-packaged rack systems, configured based on custom-created, road-tested Artist set-ups from some of the biggest names in drumming.
These three new ICON "Rack Recipes" create more easily transportable mounting solutions than traditional racks or stands, with a smaller footprint and easier tear-down.
Each new "Recipe" can be used by itself or as part of larger set-ups with other ICON Rack systems.

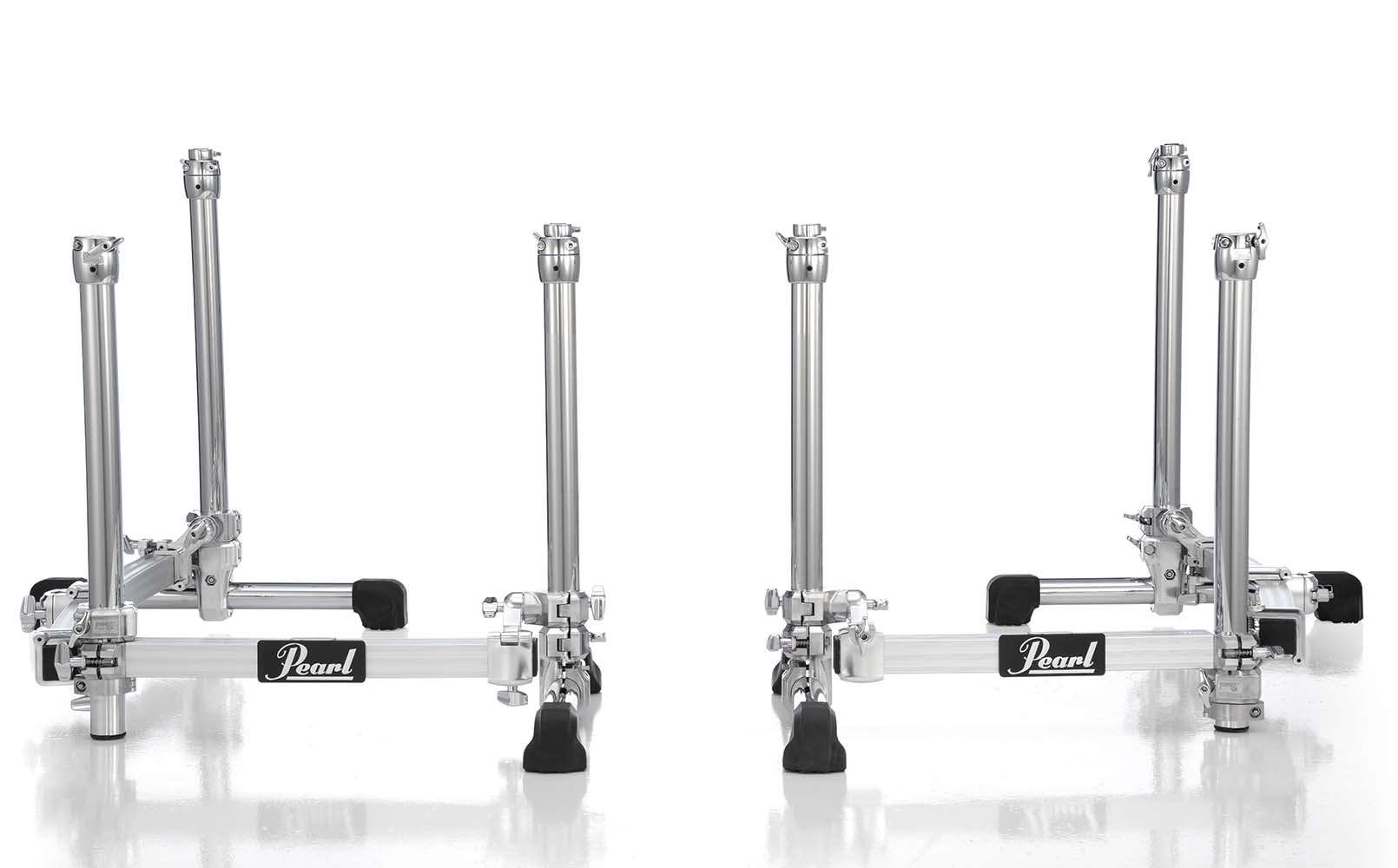

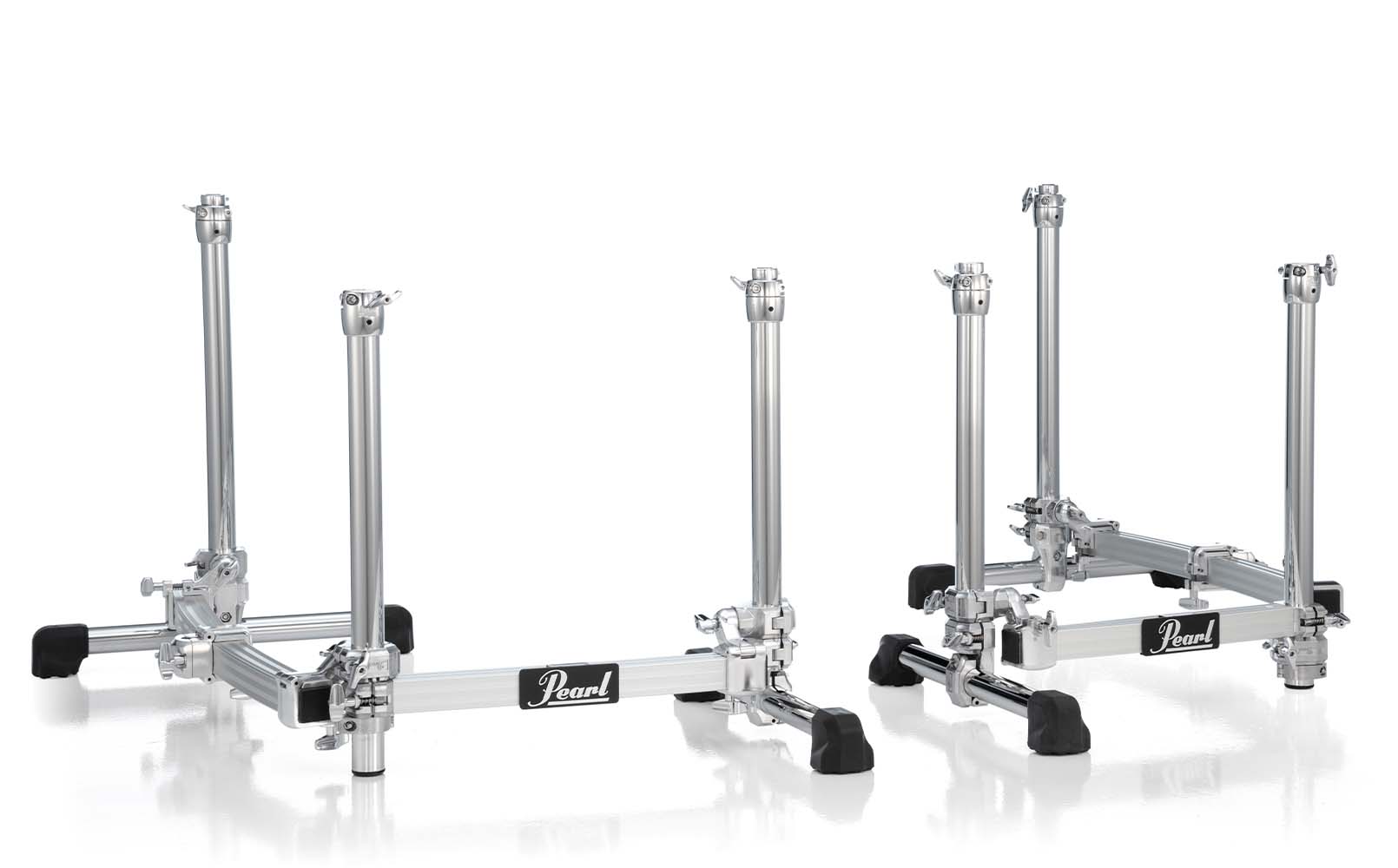

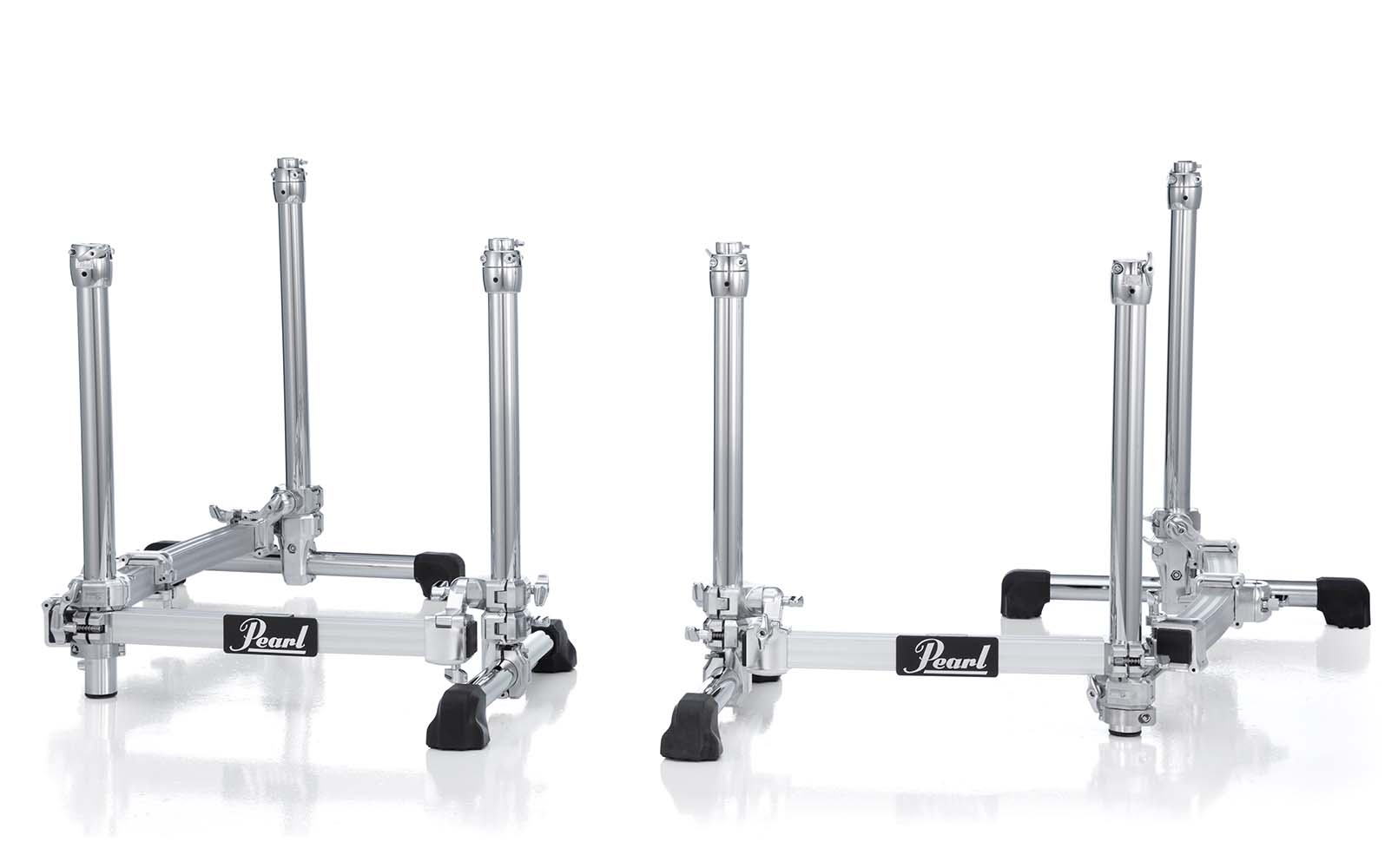

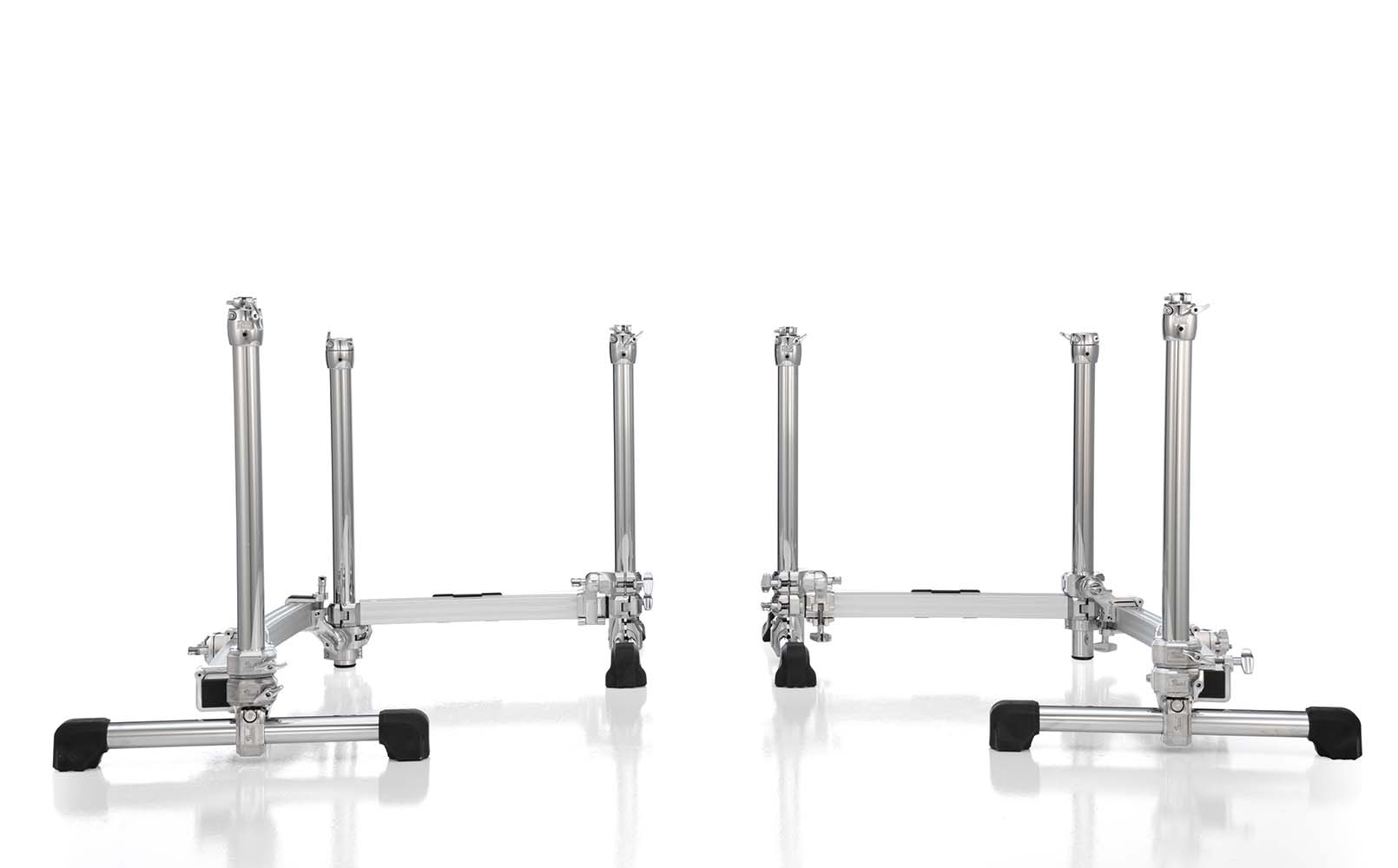

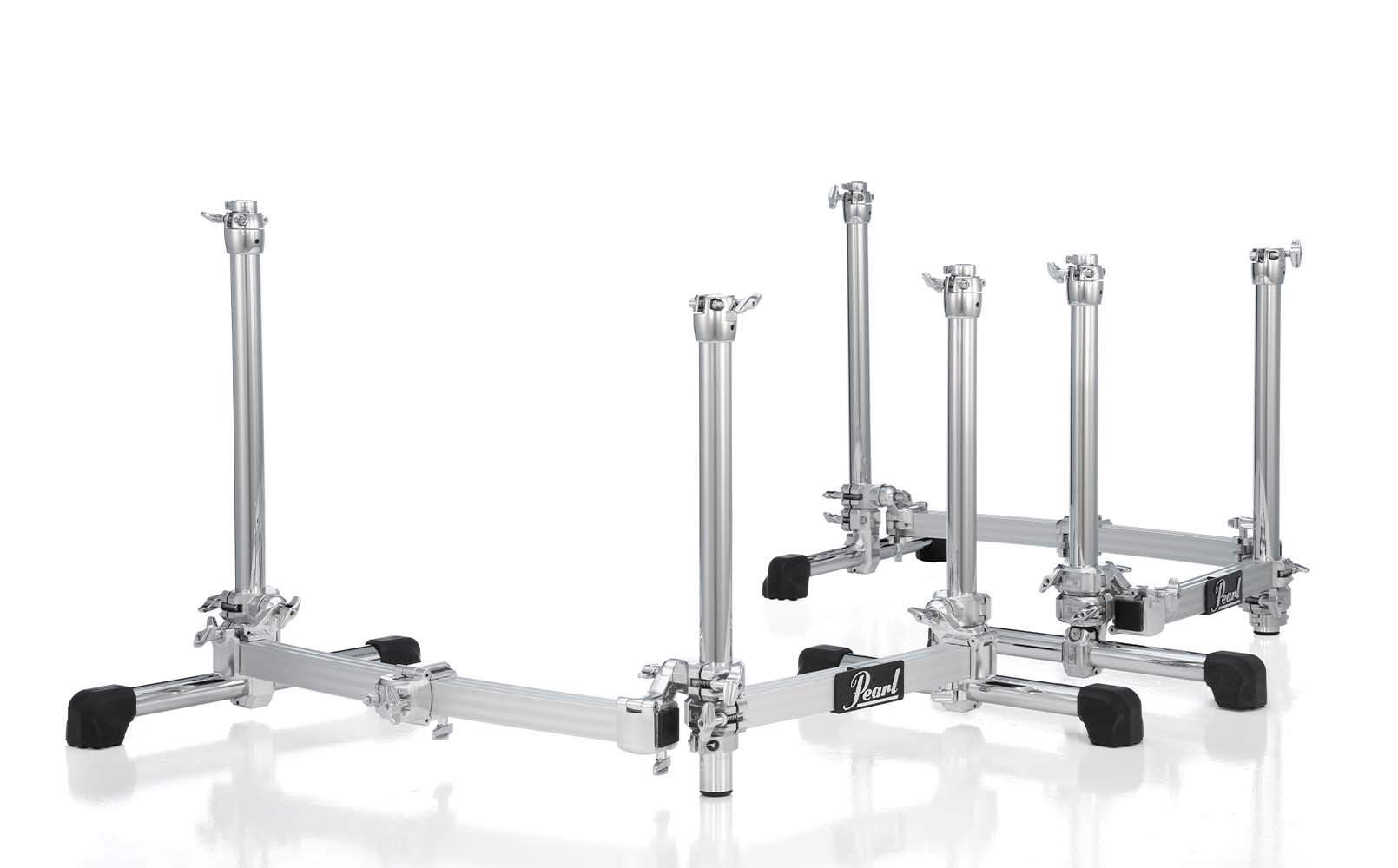

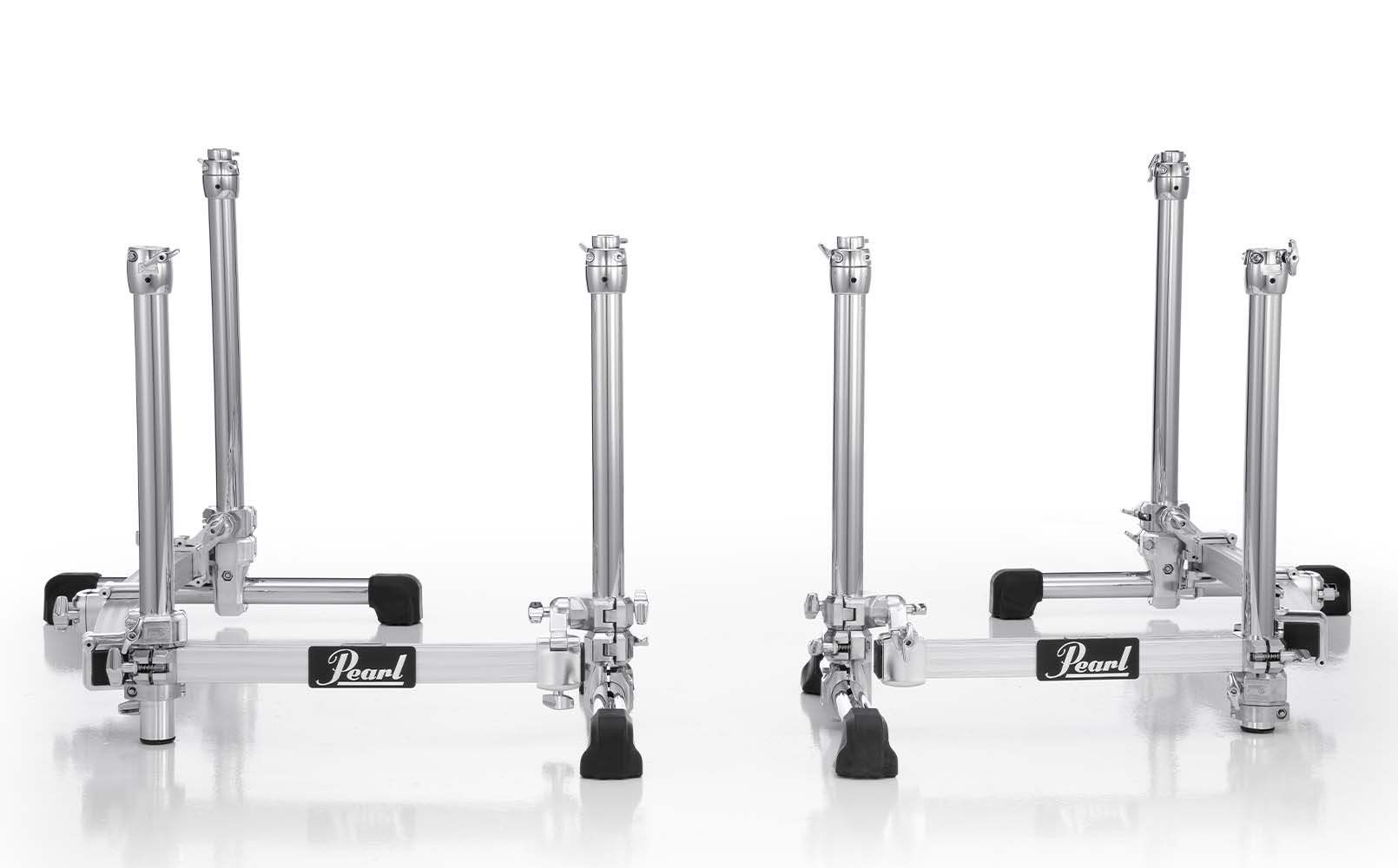

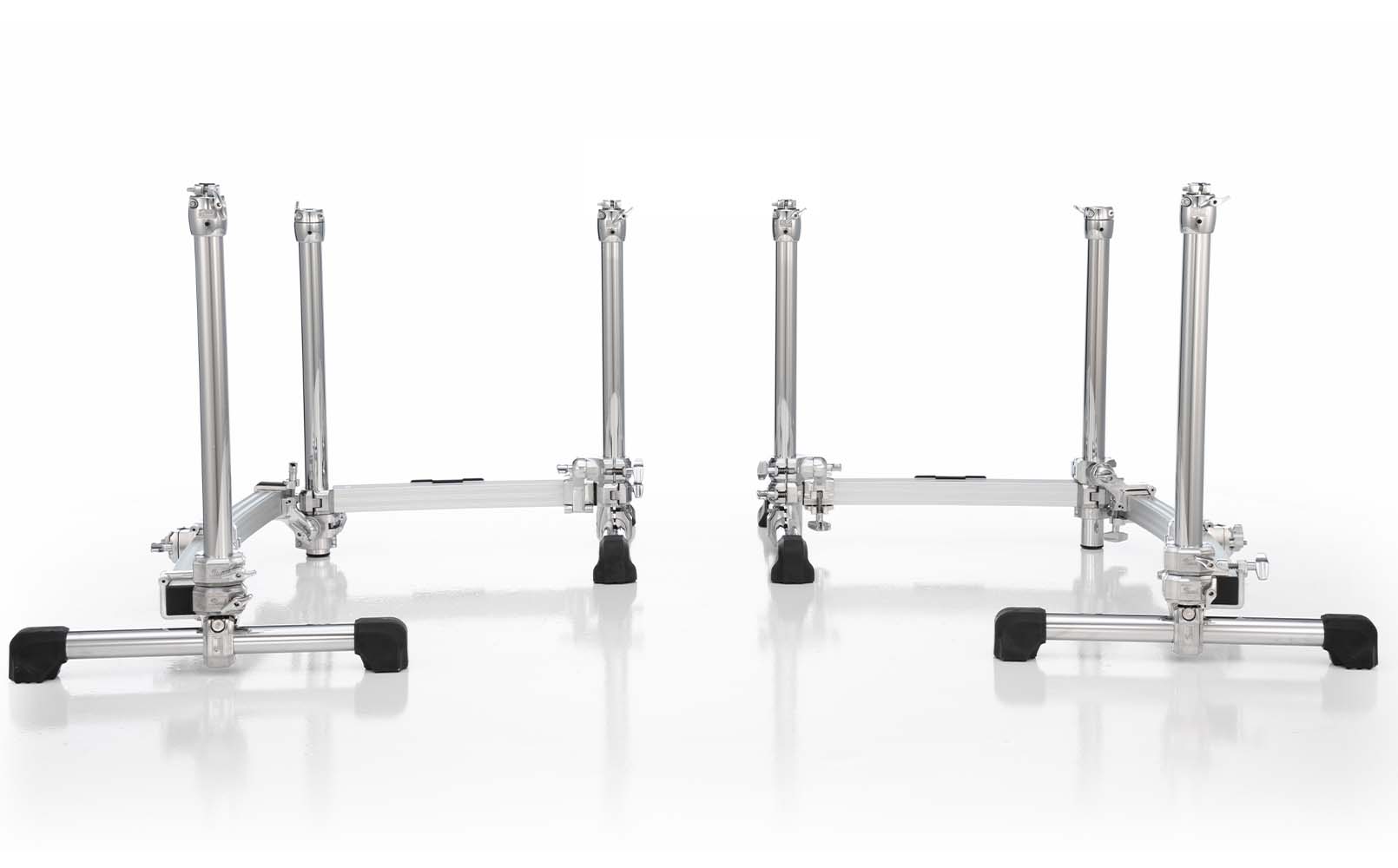

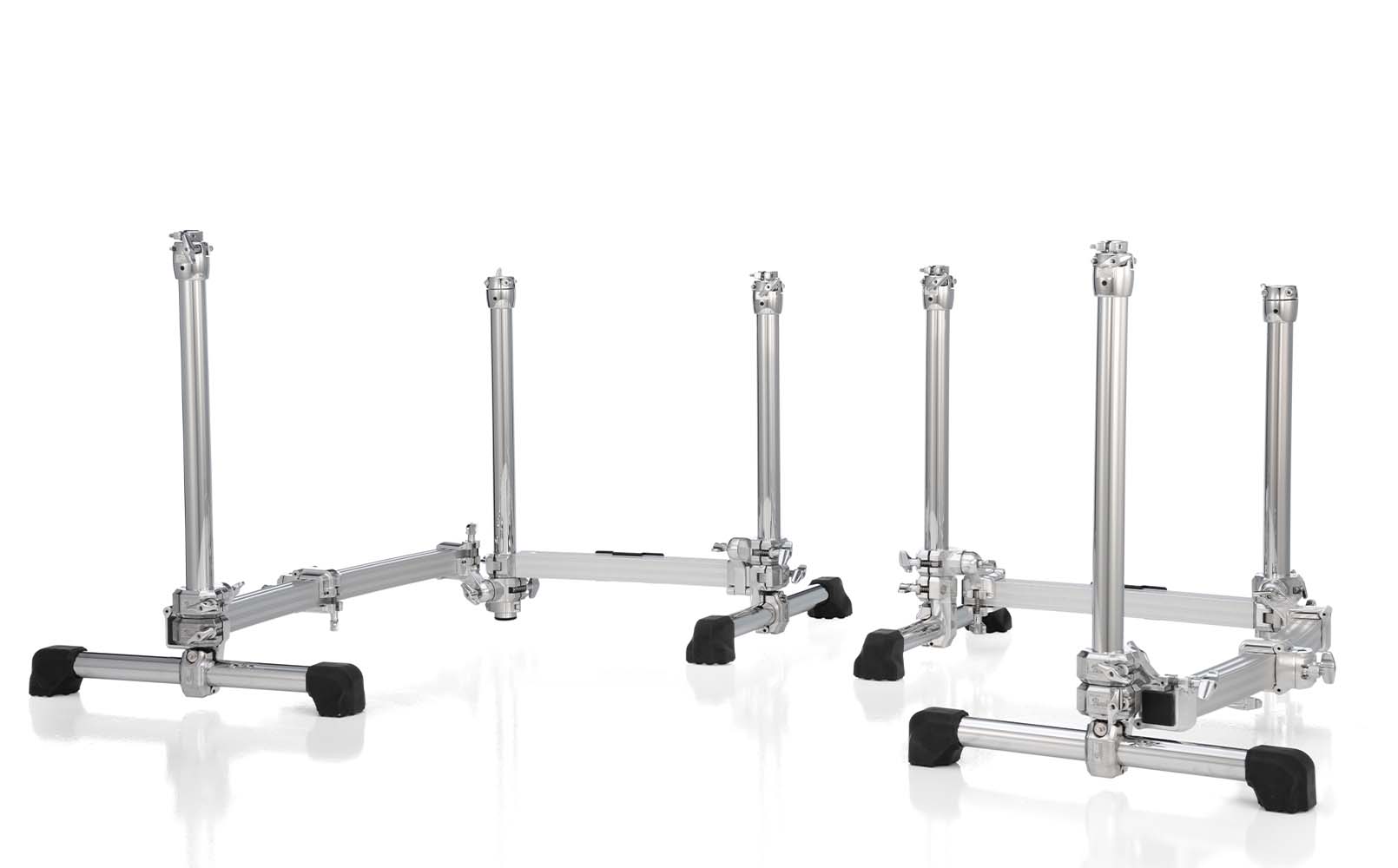

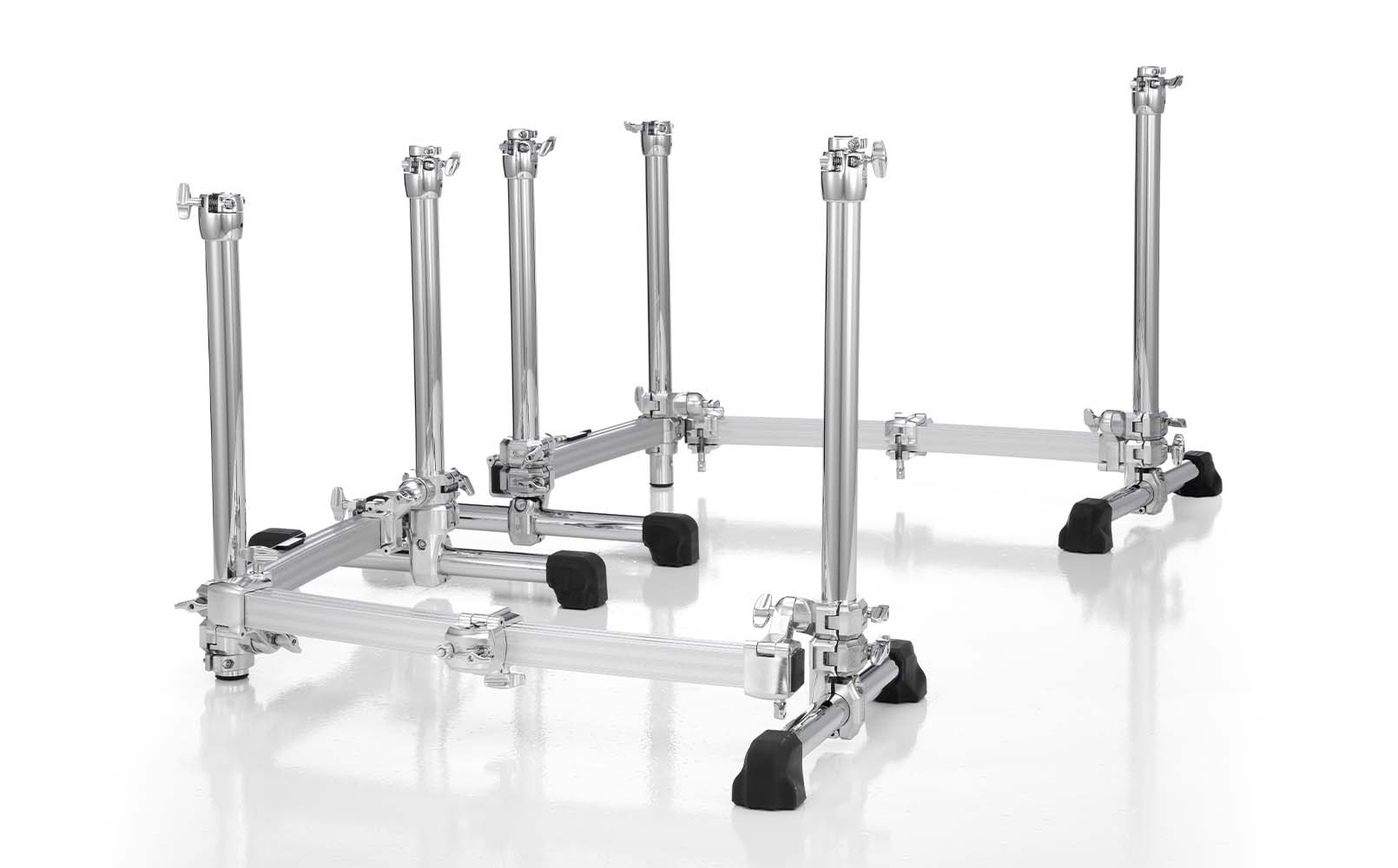

DR-564C: ICON Twin Low-Rise Folding Side Racks, Curved - Two individually flexible rack systems with two height and position-adjustable short racks in a "V" formation. Creates a large, fully-surroundable footprint.
- MAIN SUPPORT RAIL
Brushed Aluminum, 40mm Square
- MOUNTING CLAMPS
PCX-100 Clamps(x2) Fits 1/2" to 1 1/8"
PCL-100 Clamps(x2) Fits 7/8"
PCR-200 Clamps(x6) Pipe to Rail
- RACK RAIL LENGTH
Curved: 46" (From Center of Right to Left Clamp / 44" (Usable Area)
Straight: 36" (38" from Center of Right to Left Clamp)
- RACK PIPE/LEG
Steel 1.5" / 3.8cm Diameter
34" / 86.5cm Height
- SUPPORT FOOT
Rotating 1.5" Round w/TLJ-200 T-Clamp
(P-38475TA)
- Components
DR-110T(x4)
AL-103A(x2)
AL-86AC(x2)
PCR-200(x6)
P-38540NA(x2)
PCL-100(x2)
PCX-100(x2)
rgb(0,0,0)
Features
Includes (2) PCX-100 Clamps
Fits 1/2" to 1 1/8", exceptional for mounting items around the drum set.
Includes (2) PCL-100 Pipe Clamps
Accepts 7/8" Diameter Arms for mounting cymbals and accessories past the rail area.
Includes (2) Aluminum Rack Bars
Slip-proof, lightweight aluminum support rails wrap drums and cymbals around the player for greater reach and ergonomics. Tom and cymbal mounts can be placed exactly where you need them, even between setups.
rgb(0,0,0)
Includes (2) Steel Legs and Clamps
Rock-solid steel legs and clamps boasts the rugged dependability to survive a headlining tour; all with a sleek, modern look that any stage can benefit from.
Includes (6) PCR-200 Pipe to Rail Clamps
Fully compatible with market-standard round drum rack pipes, the Icon Multi-Angle Pipe to Rail Clamp allows you to connect Pearl's exclusive Icon square rack rails to any 1.5" round bar.
Includes (4) P-38475TA Rotating Support Foot
Features the TLJ-200 T-Clamp and non-skid rubber feet to give your kit a firm foundation.
Gallery
