Introducing malletSTATION EM PRO. The expandable, premium quality professional electronic mallet instrument that's ready to take your creativity to places never before possible. Not just an evolution of the original malletSTATION, but a complete departure in purposeful design. Whereas malletSTATION EM1 was designed to be light, portable, and USB-powered for the ultimate go-anywhere mallet controller, EM PRO is all about raw power, ultimate performance, and expandability. EM PRO is built around two separate components that work seamlessly together, allowing you to design the professional performance instrument of your dreams.

FacebookTwitter

malletSTATION EM PRO

Model Number

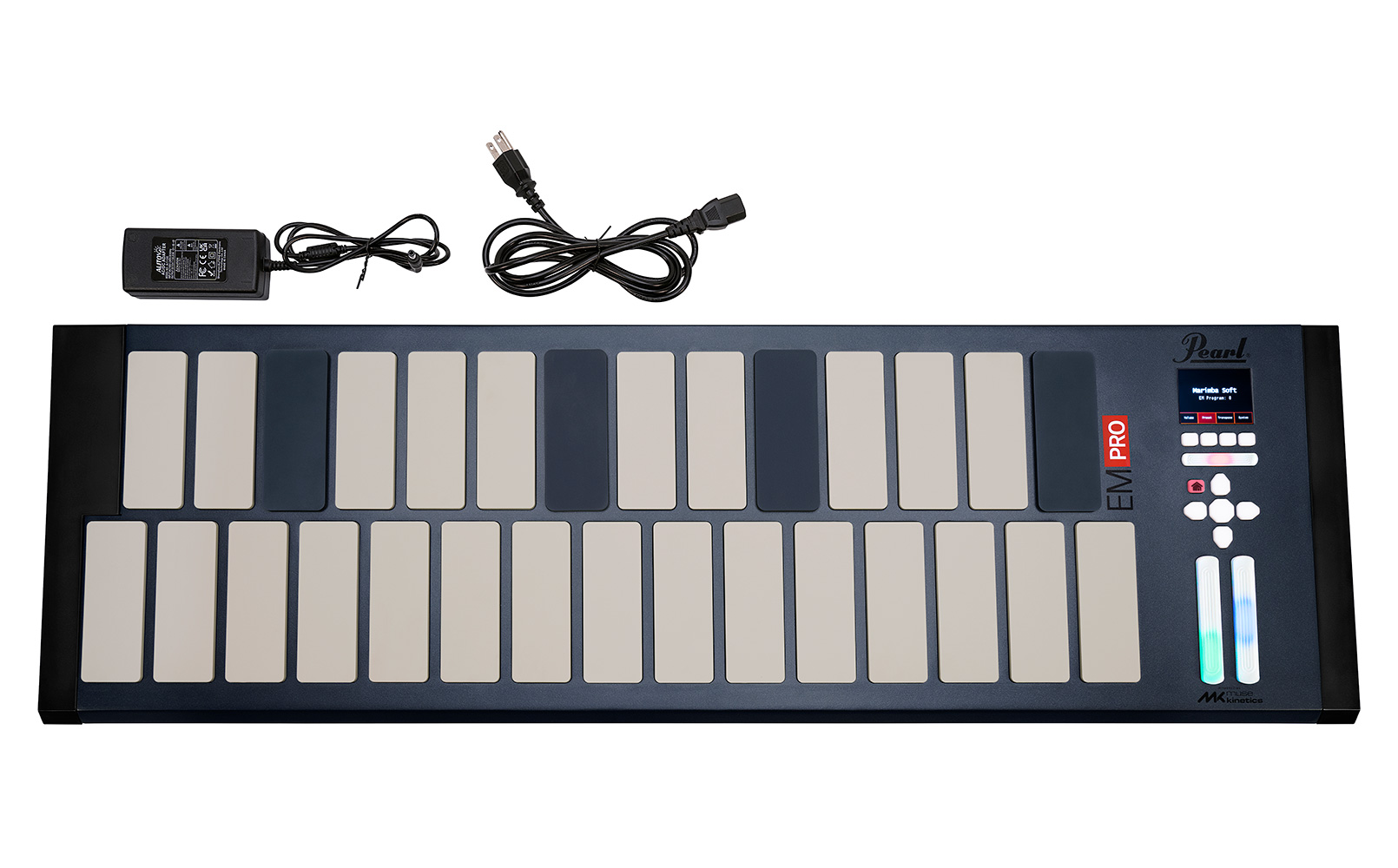

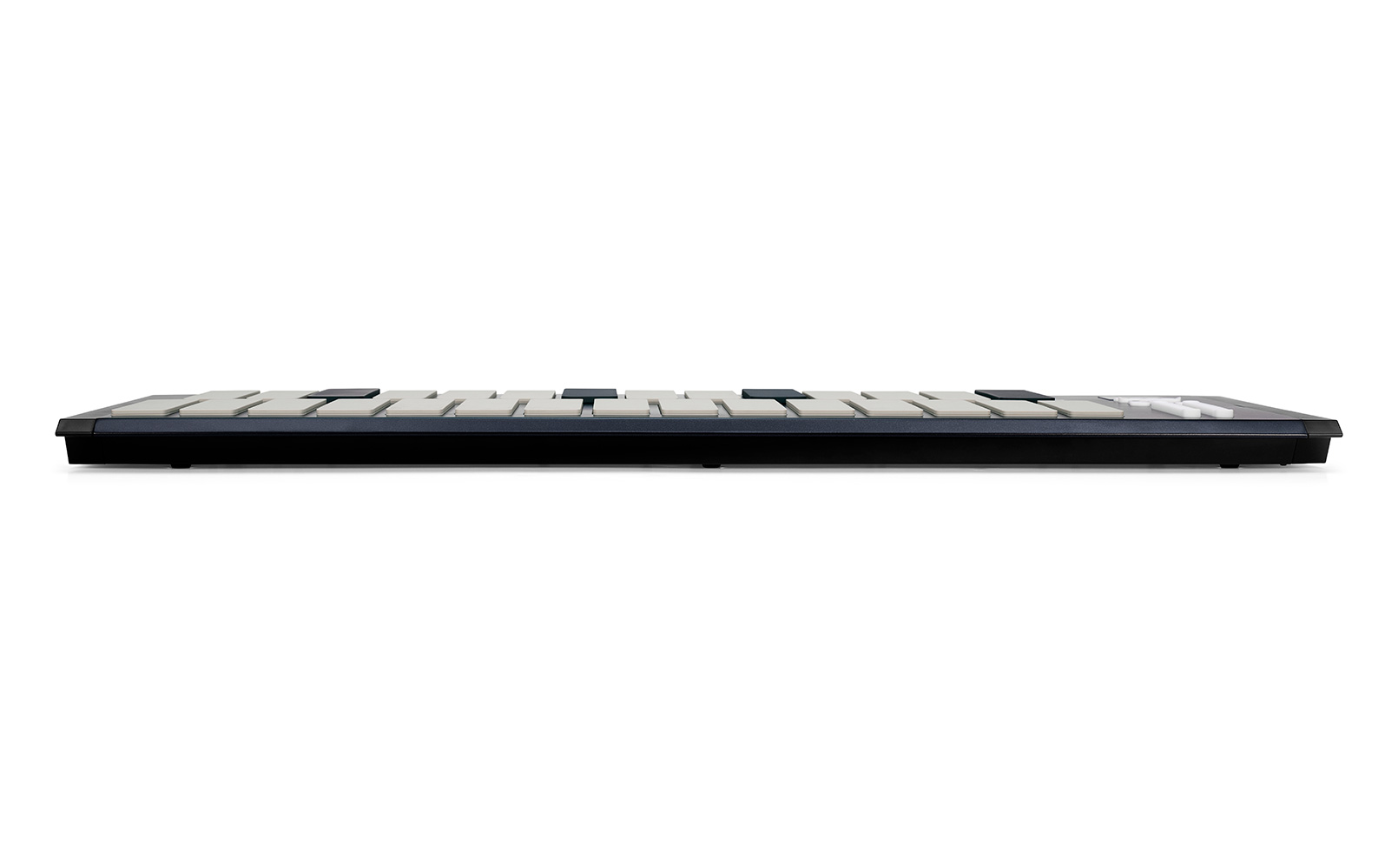

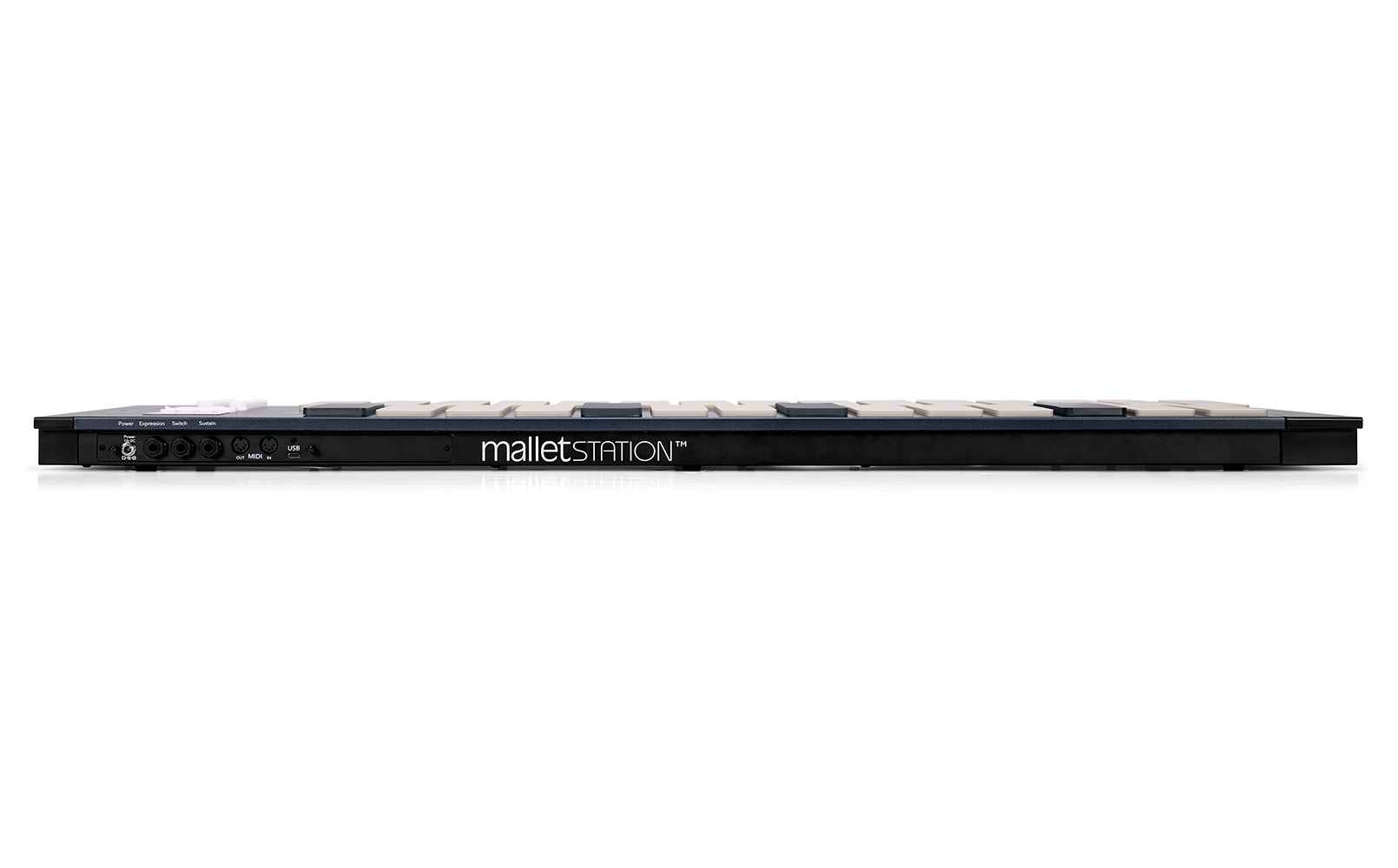

EMC - 2.0 Octave Control Unit

Features

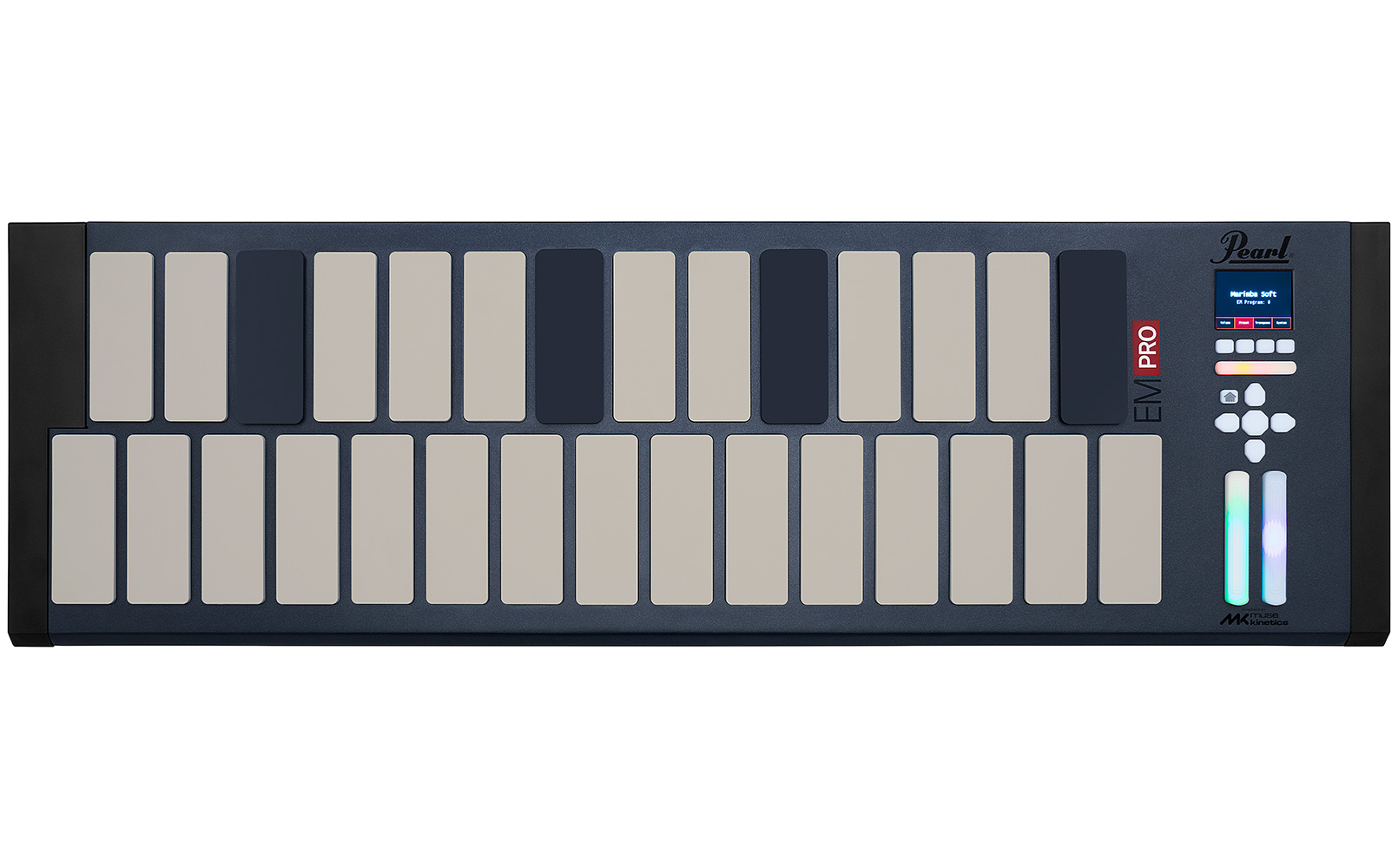

The 2.0 Octave EMC control module utilizes a modern 32-bit multi-processor architecture, offering a quantum leap in speed and power over EM1 resulting in increased bar precision, accuracy, and extended dynamic range. EM PRO features industry-leading KMI Smart Fabric Technology, a full-color, multi-line screen for navigation, programmable backlit touch-sensitive buttons and control sliders, both USB and 5-pin MIDI connectivity, and an optional Quad-Core ARM 64-bit 2.0GHz processor sound card enabling complete freedom from a computer tether during live performance.

OCTAVES

2.0 Octave Control Unit

Expandable to 5.0 Octaves

POWER

32-bit Multi-Processor

BARS

Natural Soft Silicone Keys

47mm wide x 127mm tall

9.5mm bar gap

SENSORS

KMI Smart Fabric Sensors

DISPLAY

Full-Color, Muti-Line LED Screen

CONTROLS

Programmable backlit touch-sensitive buttons and control sliders

CONNECTIVITY

USB & 5-pin MIDI

WEIGHT

32 lbs

END CAP

Logo black detachable end cap

OPTIONAL SOUND CARD

Quad-Core ARM 64-bit 2.0GHz processor featuring high-fidelity instrument recordings from Soundiron.

malletSTATION EM PRO

Model Number

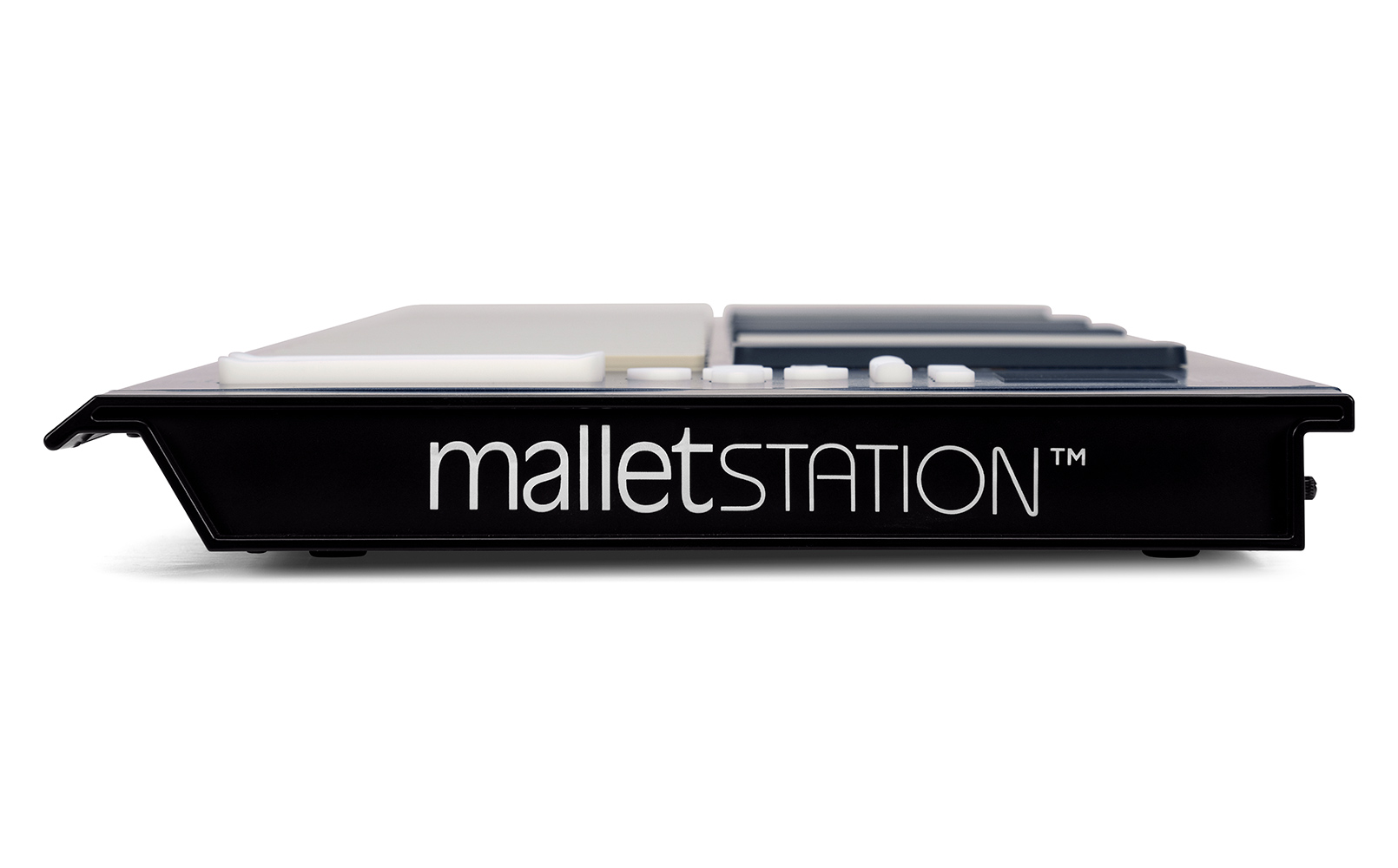

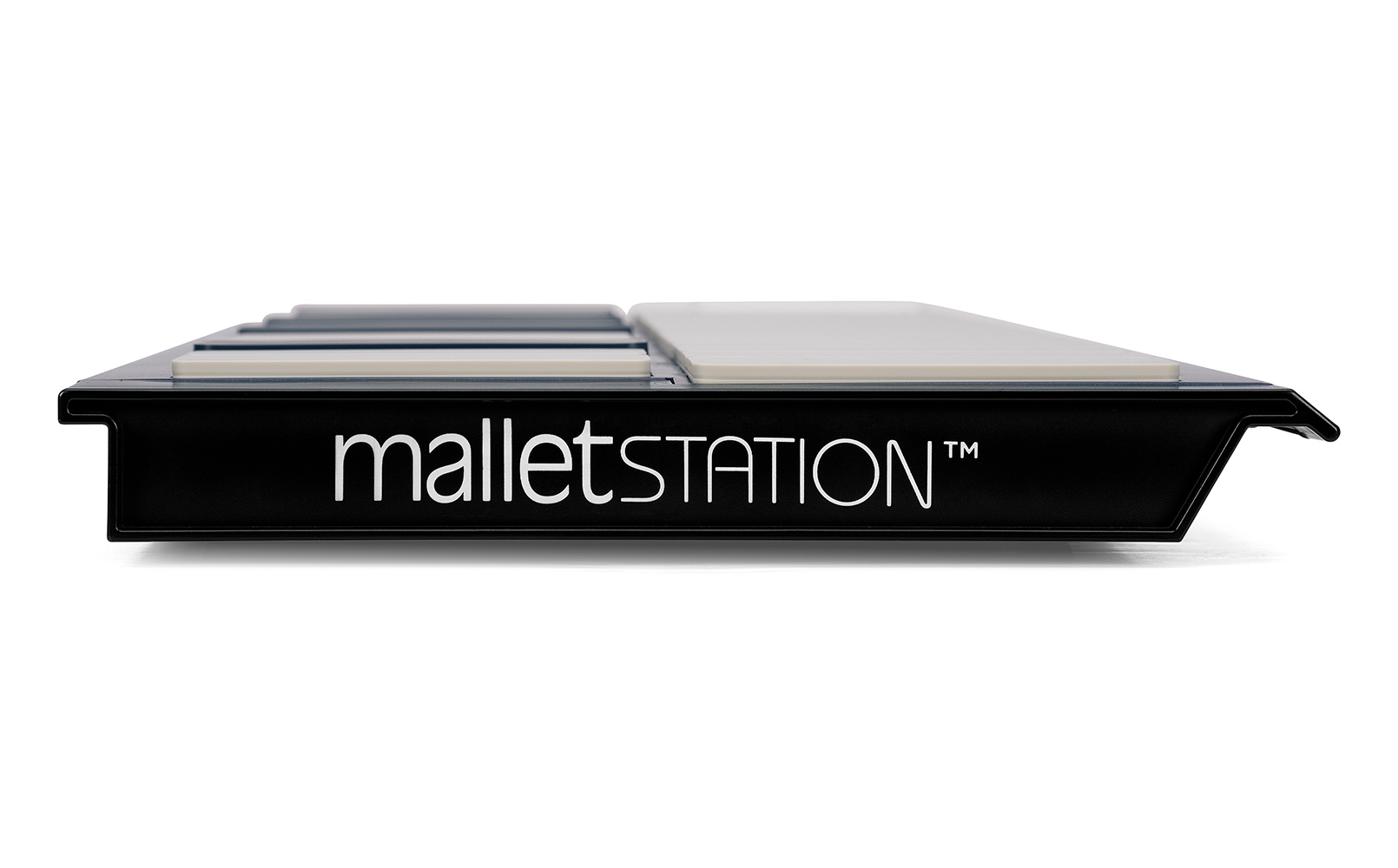

EMX - 1.0 Octave Expansion Unit

Features

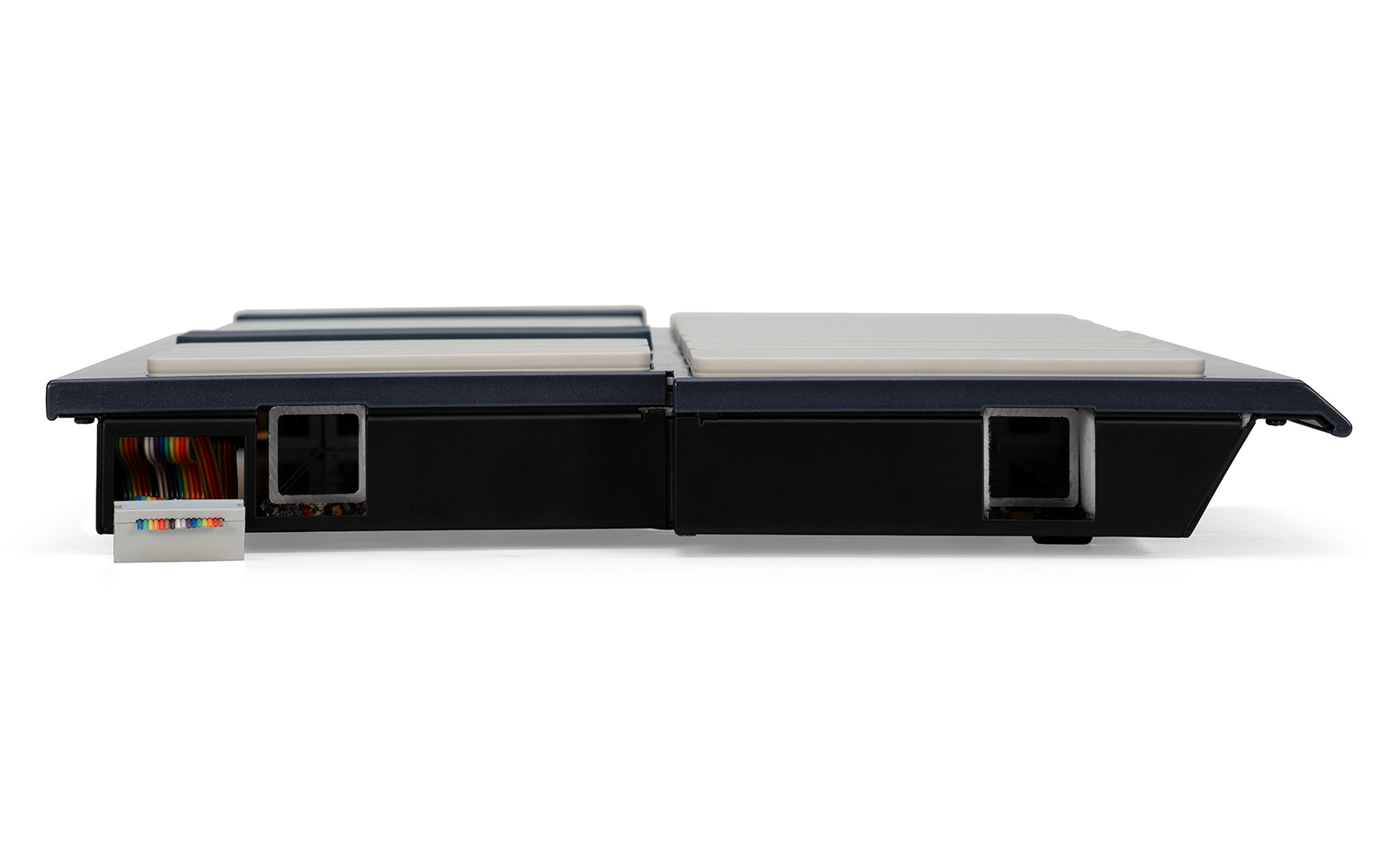

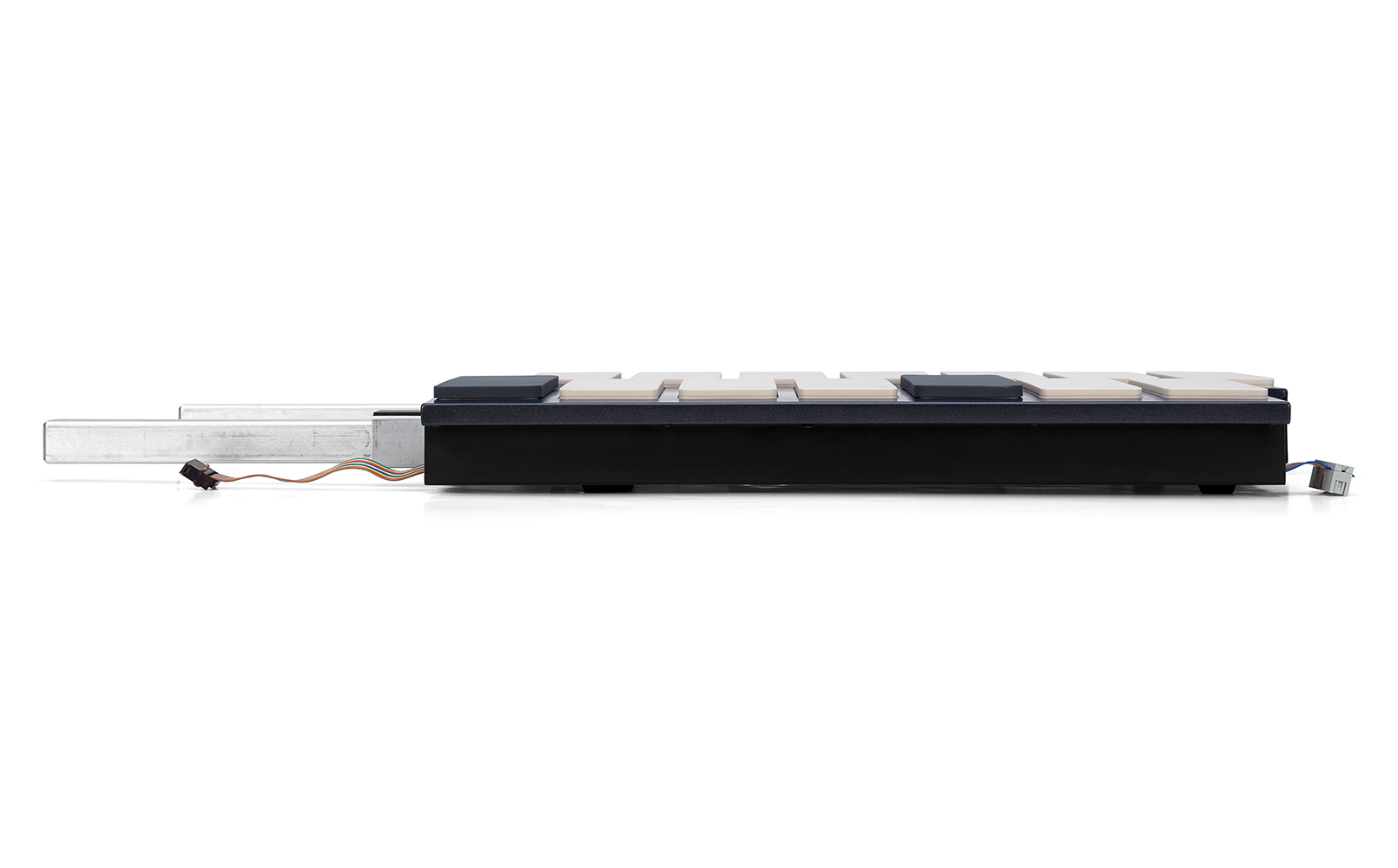

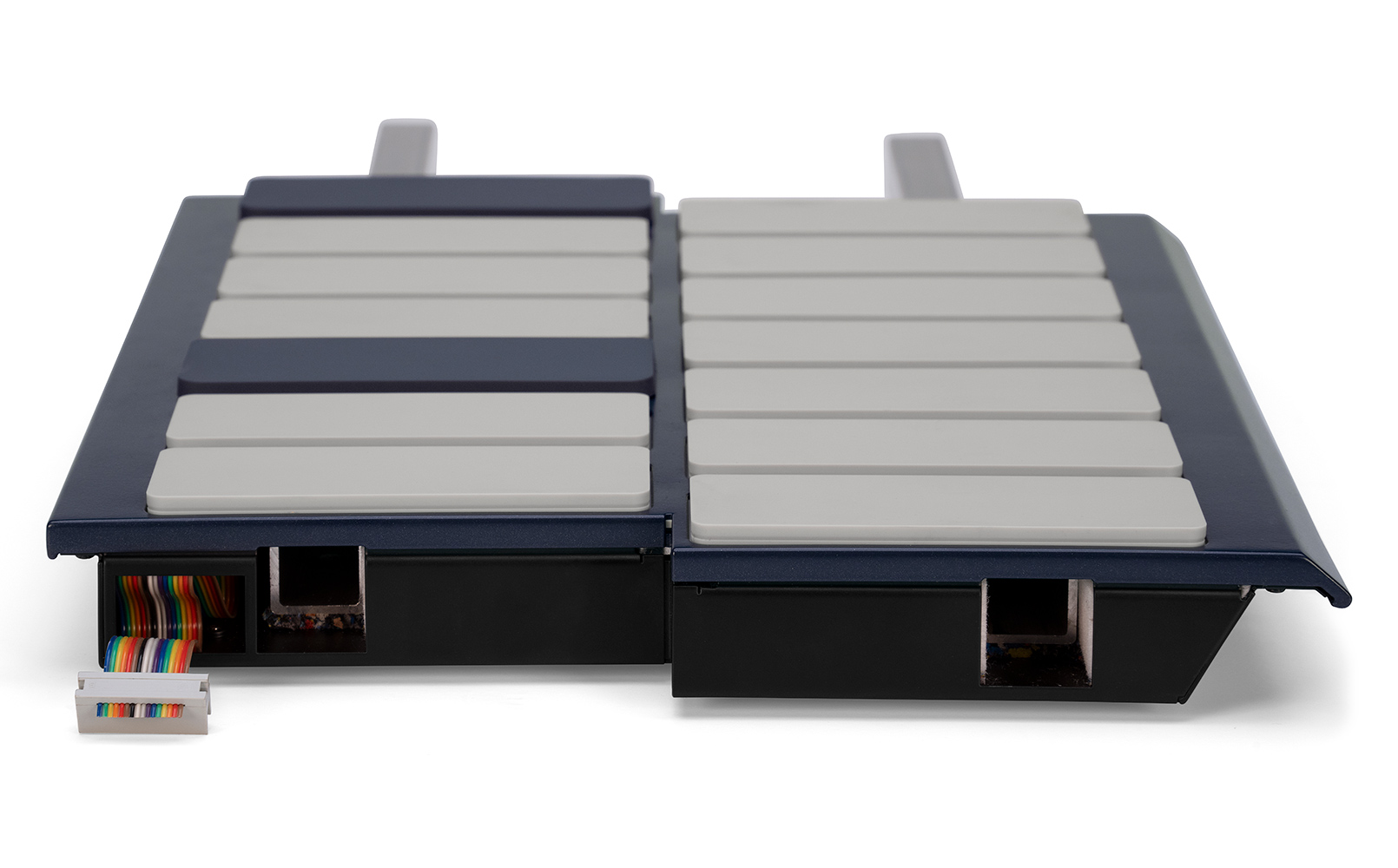

The EMX Expansion Module brings creativity and individuality to EM PRO. Simply remove the end cap of the Control Module and slide on one, two, or three EMX Expansion Modules to create a 3, 4, or a complete 5-octave professional mallet instrument. Modules seamlessly lock together, and the inner aluminum structure creates a secure, precise, and rock-solid playing surface. Each expansion Module also features an additional dedicated onboard processor, so adding multiple expansion modules never impacts core performance.

OCTAVES

1.0 Octave per unit

Expandable to 5.0 Octaves

POWER

Dedicated 8-bit onboard processor

STRUCTURE

Rock-solid aluminum for seamless integration between units

WEIGHT

14 lbs

Features

Your Creativity, Expanded

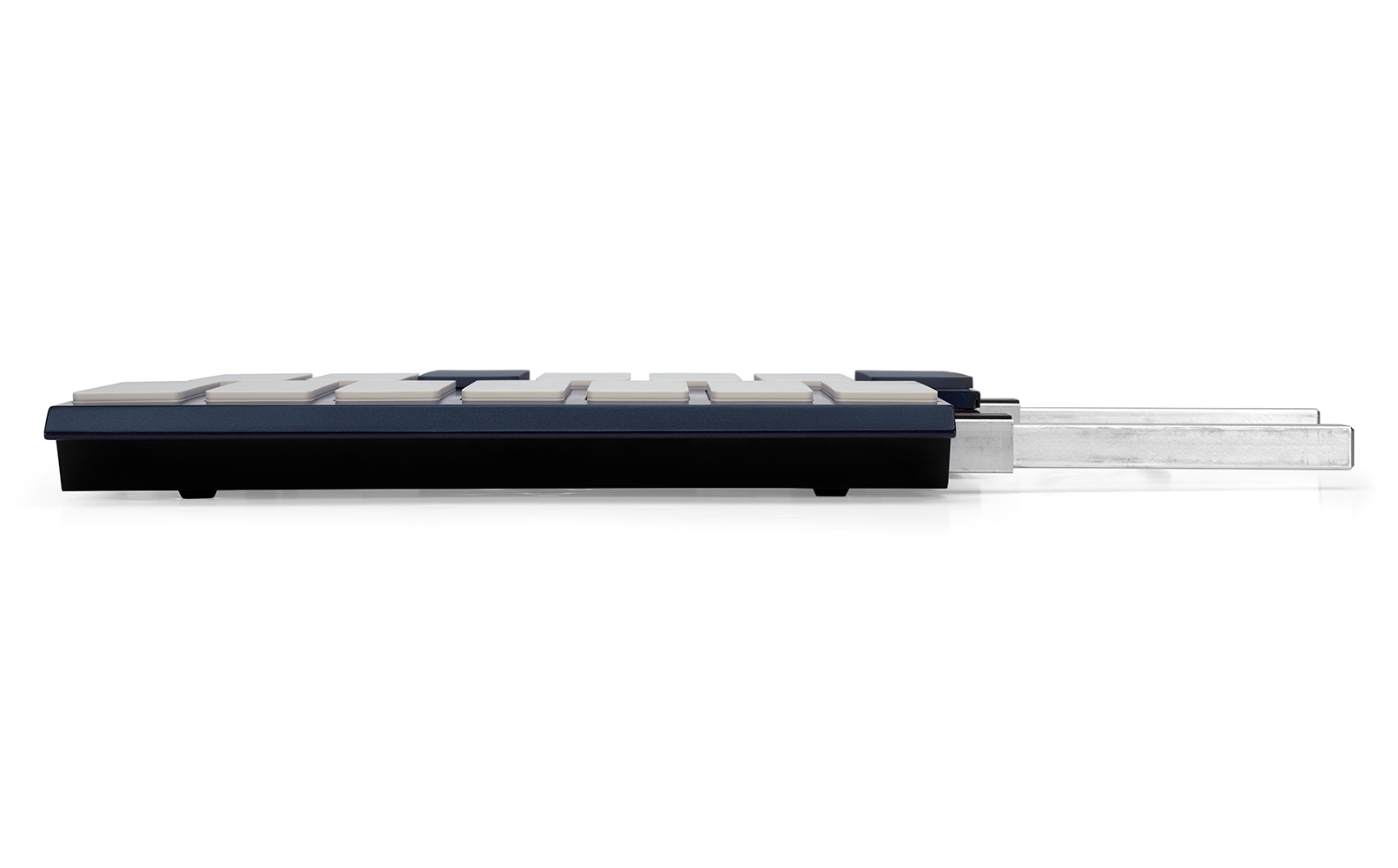

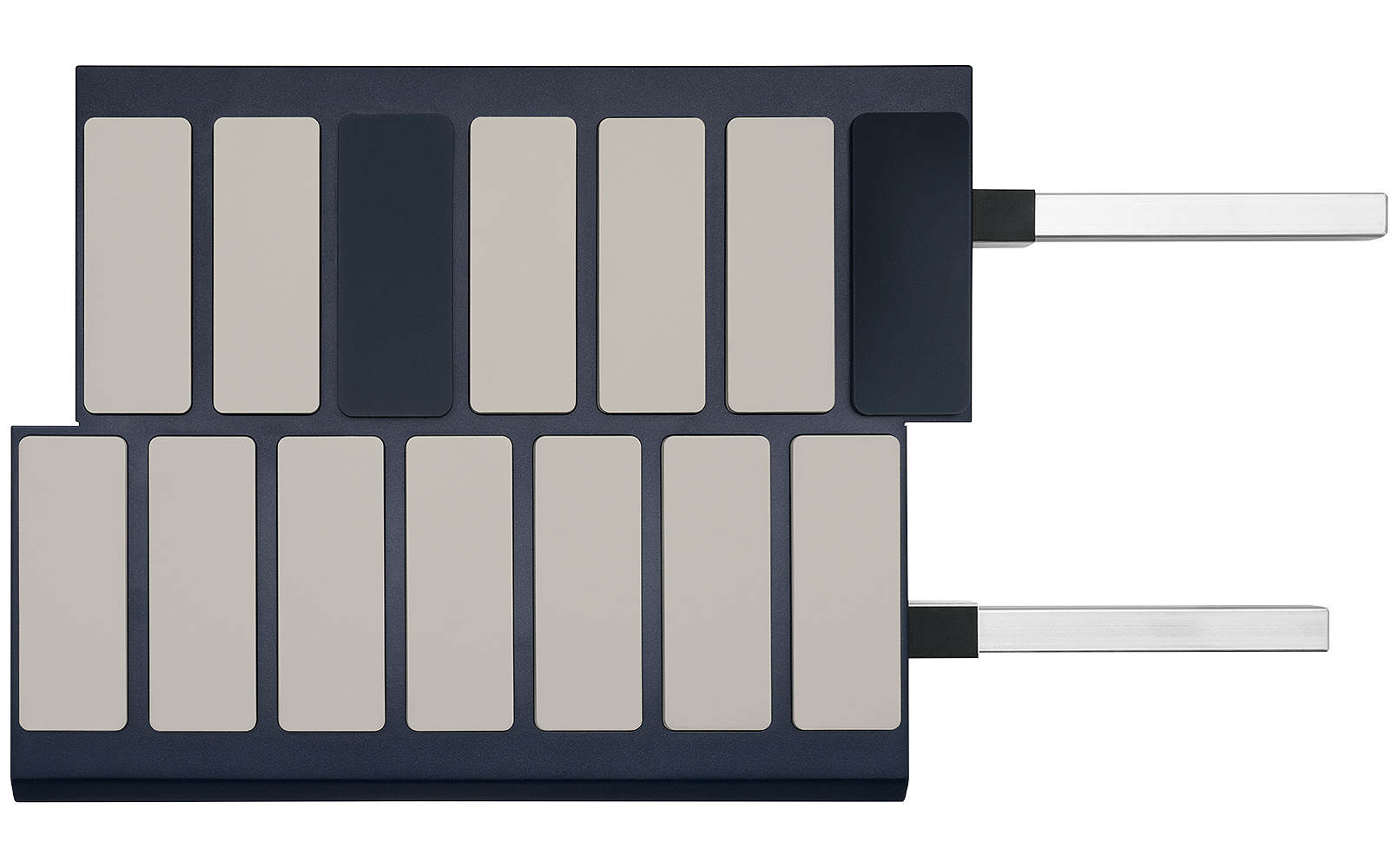

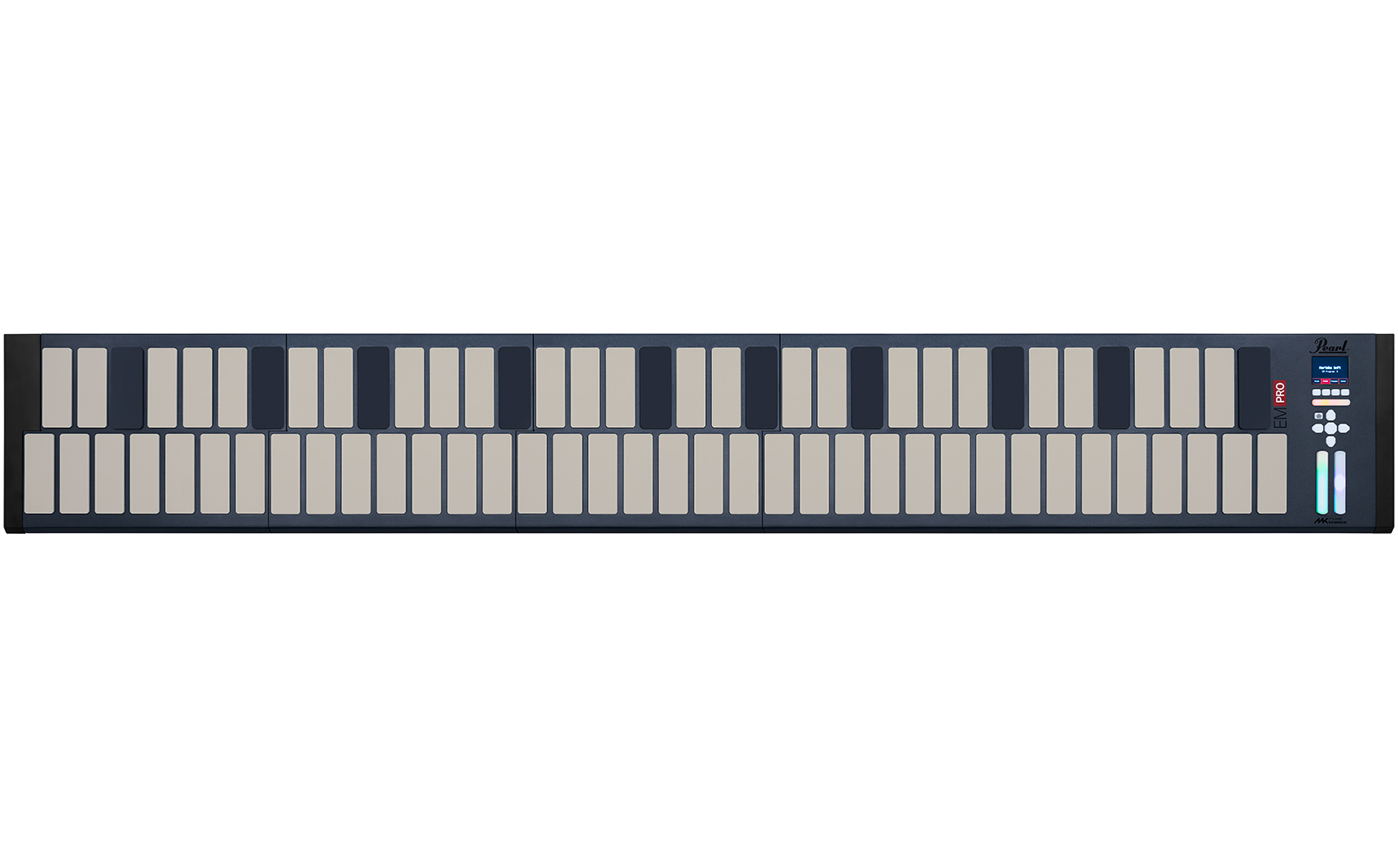

EM PRO can be expanded to a full 5.0 Octave mallet instrument by utilizing individual EMX 1.0 Octave Expansion units. Simply remove the built-in End Cap from the control unit, slide the aluminum beams into place, and re-attach the end cap.

More Control, at Your Fingertips

EM PRO features an all-new full-color, multi-line screen for navigation, programmable backlit touch-sensitive buttons and control sliders, making on-stage performance changes quicker and easier than ever.

KMI Smart Fabric Technology

EM PRO features Smart Fabric Technology, a Keith McMillen Instruments exclusive. Smart Fabric Technology is truly next level, allowing EM PRO to be highly expressive, light, and dynamic. This non-woven polyester fabric is coated with billions of carbon nanoparticles, giving it conductive properties that change as pressure is applied. Sandwiched between a tough, smooth silicone outer cover and placed on a bed of electronic traces, proprietary algorithms receive precise pressure and location data, giving Smart Fabric Technology night and day performance increases over other dated instrument sensor types.

Optional Sound Card

The optional EM PRO sound card replaces the stock MIDI card by simply sliding into its place. It features a Quad-Core ARM 64-bit 2.0GHz processor for speed and power and enough onboard storage for a complete library of instrument choices. The optional sound card ships with an all-new lush, beautifully recorded Adams Alpha 5 octave Marimba and Alpha Vibraphone sampled by our new sound partner, Soundiron. Soundiron has been creating ultra-premium sample libraries for over a decade, and our new online sample store will allow you to download libraries from every genre imaginable. Transfer sounds directly to your sound card over onboard Bluetooth or wired connection, and you are ready for endless performance opportunities.
